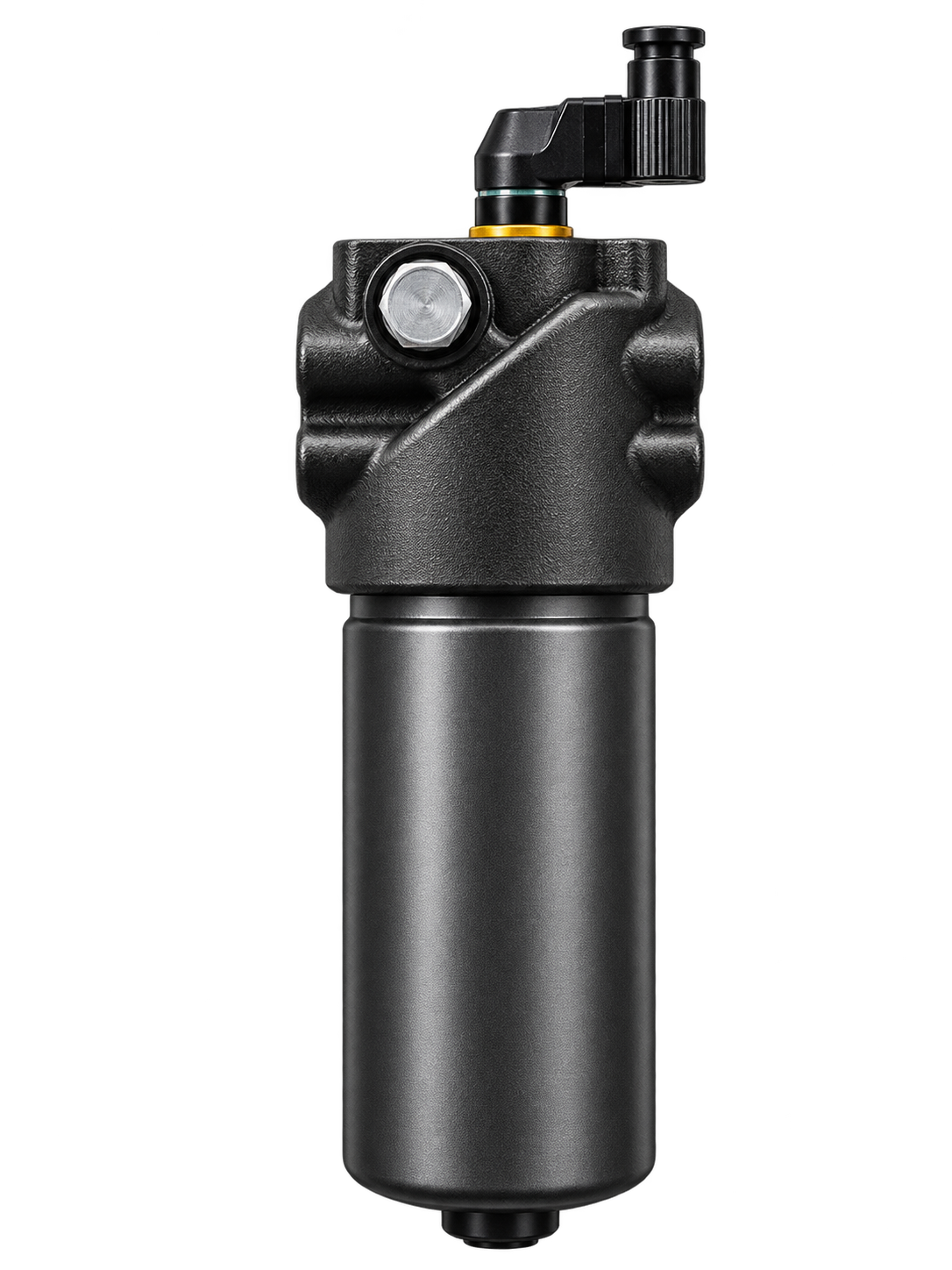

Series 121 High-Pressure Filter Housing, 40 GPM, SAE-16, High Collapse, Electrical-Visual Indicator, 87 PSI Bypass, Buna — DFPHH-121-40S16HCE6B
DFP part numberDFPHH-121-40S16HCE6B
Series 121 high-pressure simplex hydraulic filter housing, configured as DFPHH-121-40S16HCE6B.
- Max operating pressure: 6000 PSI (420 bar)
- Burst pressure: 18270 PSI (1260 bar)
- Nominal flow: 40 GPM (150 L/min)
- Inlet / outlet: -16 SAE-ORB
- Element: high-collapse element, 3000 PSI (206 bar)
- Indicator: electrical-visual ΔP indicator
- Bypass: 87 PSI (6 bar) bypass valve
- Seals: Buna (Nitrile)
- Temperature: −4°F to 203°F (−20°C to 95°C)
Housing only — the filter element is sold separately. Build the matching element on the assemblies & housings page.
$1,415.00each
We stock a wide range of elements. Non-stock elements can take up to 10–15 business days, please contact us to confirm availability.
Free freight on orders of $500 or more in product value, 48 contiguous states and DC. See terms
Question about this product? Call 248-566-8720.
Order by DFP part number. Not sure it's the right cross? Call 248-566-8720.
Use of OEM trademarks and part numbers is for cross-reference purposes only and does not imply any affiliation with or endorsement by the original manufacturer.
β 2000
Rated media efficiency
β(c) ≥ 2000 at the element's rated micron size, per ISO 16889 — 99.95% of particles that size and larger removed in a single pass.
10–15DAYS
Non-stock lead time
We stock a wide range of elements. Non-stock elements can take up to 10–15 business days, please contact us to confirm availability.
54,000+
Cross-referenced part numbers
Competitor part numbers matched to a DFP equivalent, one DFP number per cross.
Specs
Performance
| Seal | Buna (Nitrile) |
|---|---|
| Working pressure | 6000 PSI |
| Max operating temp | 203°F |
Description
Series 121 high-pressure simplex hydraulic filter housing, configured as DFPHH-121-40S16HCE6B.
- Max operating pressure: 6000 PSI (420 bar)
- Burst pressure: 18270 PSI (1260 bar)
- Nominal flow: 40 GPM (150 L/min)
- Inlet / outlet: -16 SAE-ORB
- Element: high-collapse element, 3000 PSI (206 bar)
- Indicator: electrical-visual ΔP indicator
- Bypass: 87 PSI (6 bar) bypass valve
- Seals: Buna (Nitrile)
- Temperature: −4°F to 203°F (−20°C to 95°C)
Housing only — the filter element is sold separately. Build the matching element on the assemblies & housings page.
Check another number
Does this element cross to your part?
Enter the competitor part number you're replacing. If it crosses to this element you'll see it here; if it crosses to a different one, we'll take you there.
Stuck on a part?
Send us the part number or application and we'll cross it.
Still not sure which one?
We'll send your search to our filtration team and confirm the right element.
Inferred from related crosses — verify
Inferred from related crosses — verify
Match on our records — confirm application
Match on our records — confirm application
On the manufacturer's published cross list
Let's verify this cross with you
We can cross any filter element — but media grade, micron rating, seal compound, collapse strength and end-cap fit all factor into a true interchange. For a lower-confidence match like this one, have our filtration team confirm the exact equivalent before you order.
